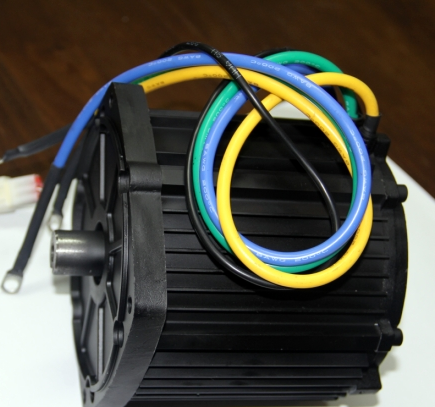

SL140-60 PMSM motor for E mootorcycle

 SENLI Co, Developed new PMSM motor for electric motorcycle.

Rated 72V 3500RPM 5KW Peak 10KW , weight 8.3KG , Hall sensors

1. Diamter of stator 140mm 12 slots;

2. Rotor magnet  N 42SH magnet 60mm long

3. Hall sensors KTY83-120 temp sensors

4. Sillicon cable 7AWG  12mm2

5. Barrel  color: Black

6.  Shaft D25mm with 8X7.5Keyway

7. you can select sprocket 428 15 teeth
