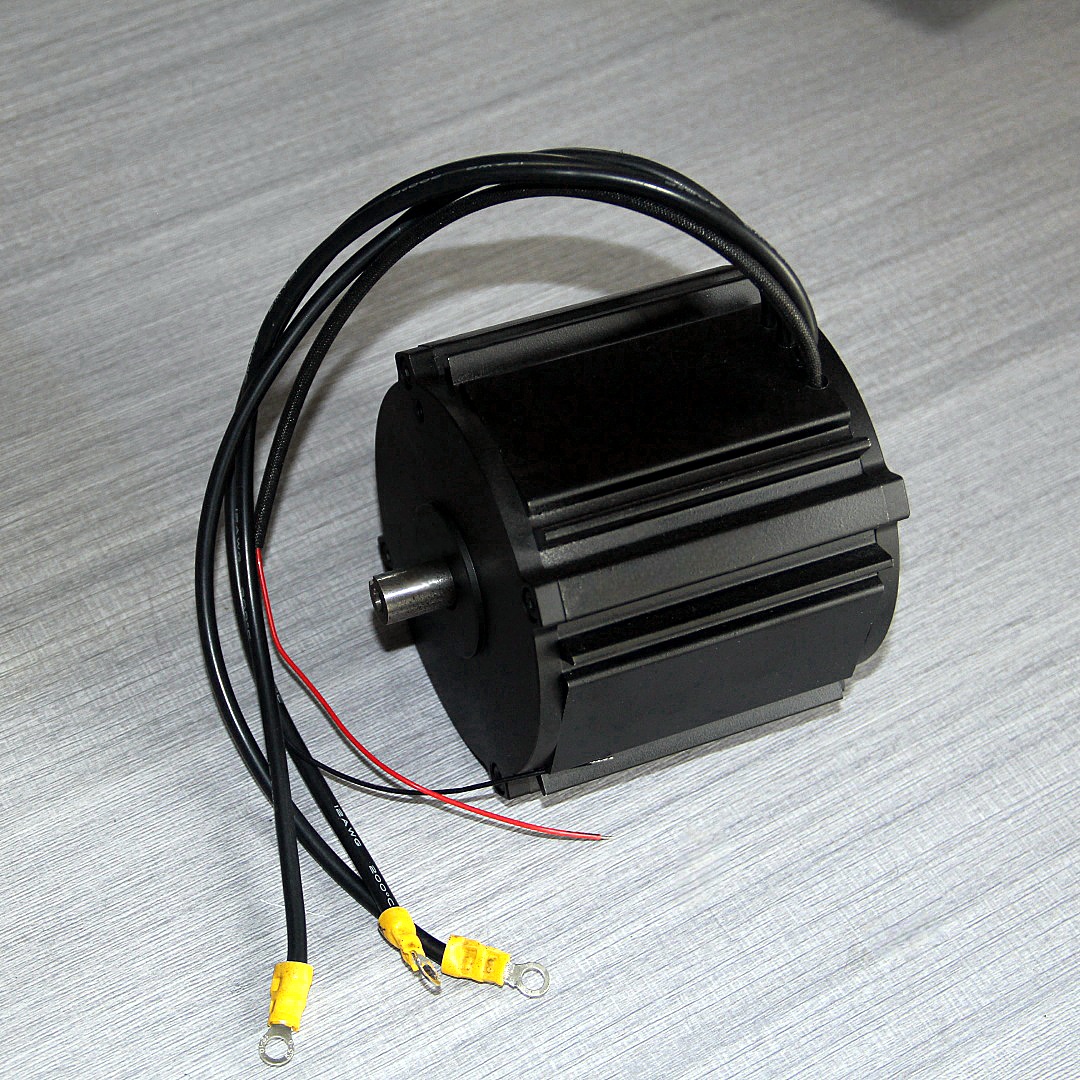

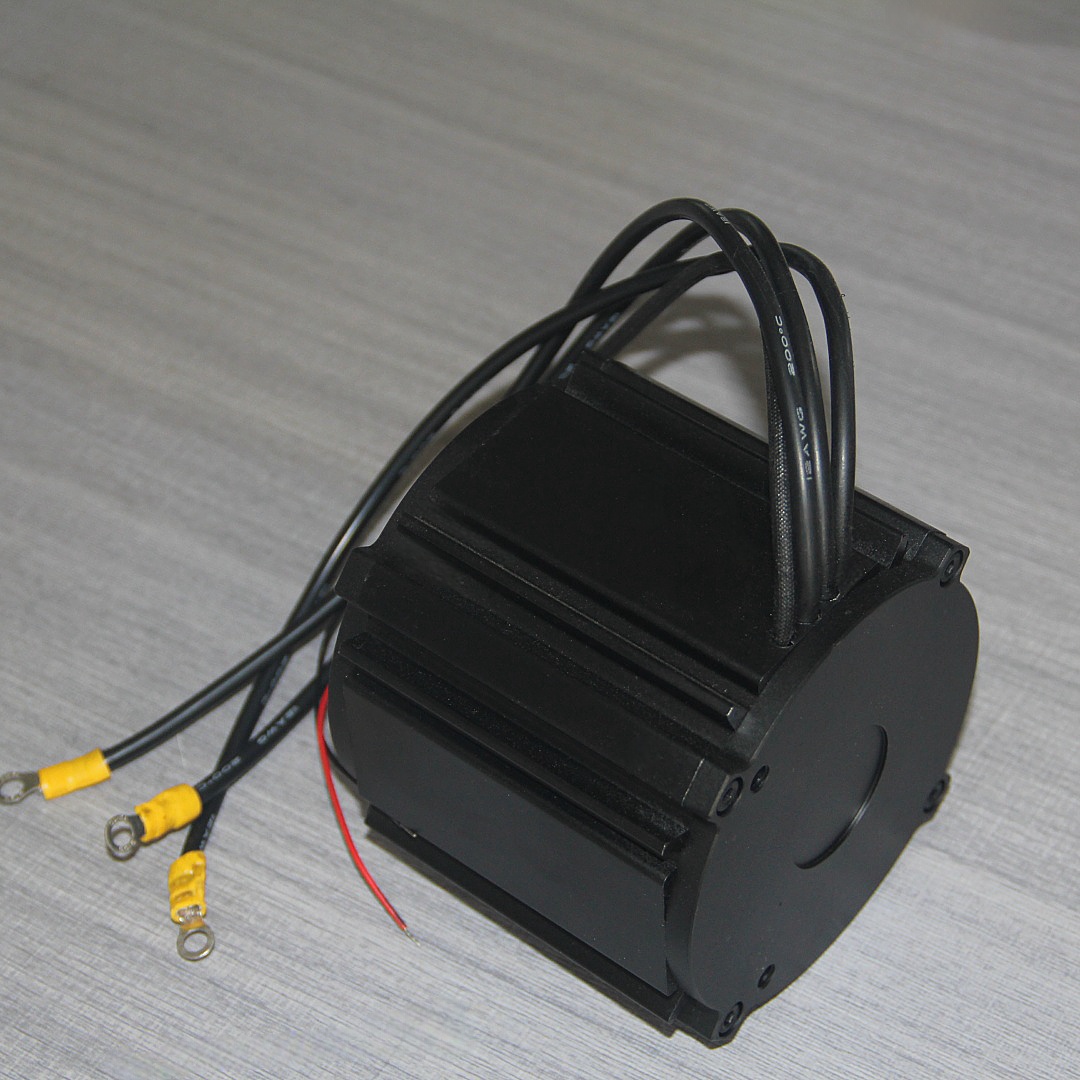

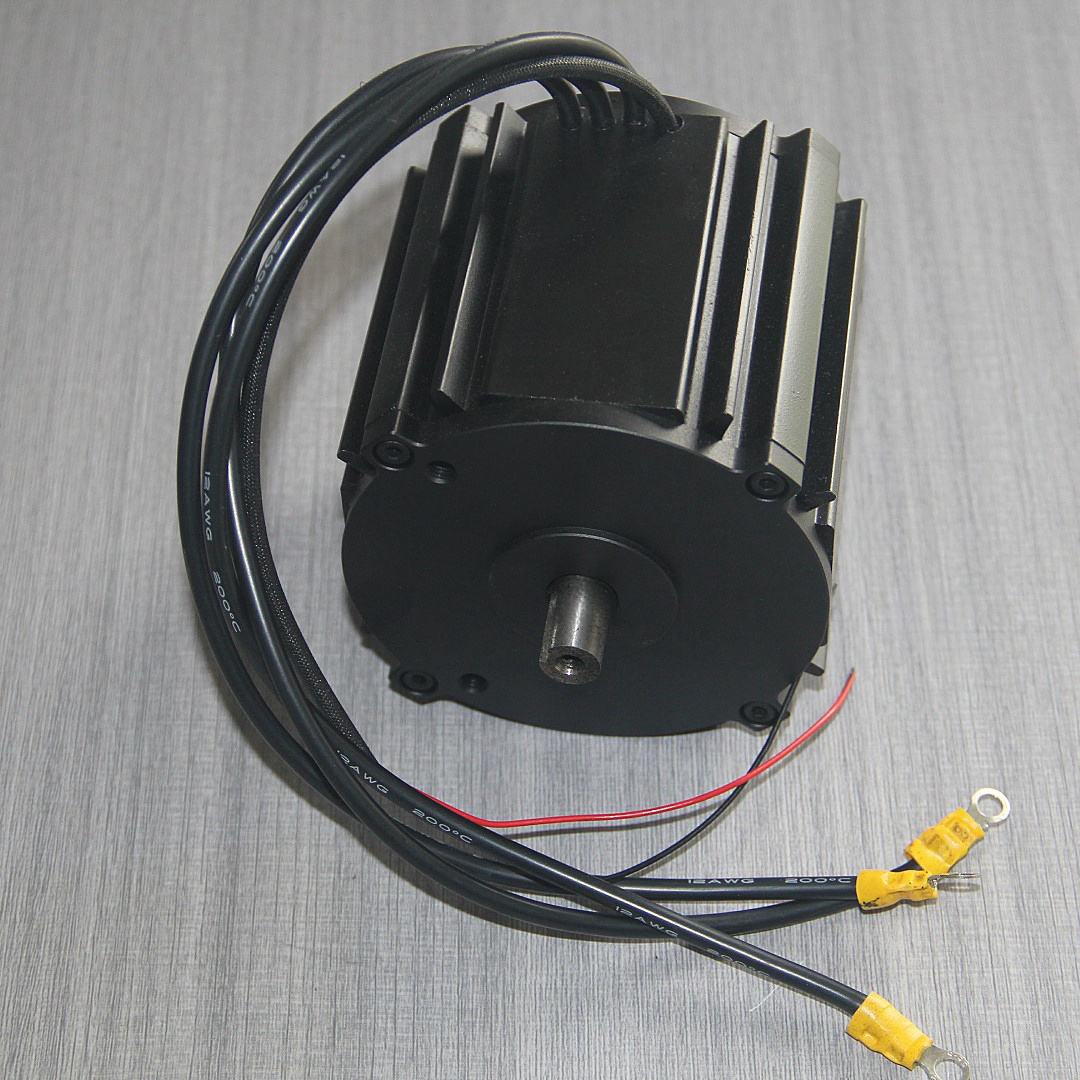

SL9050 IPM Motor KV 138 1800W for Lawn mower

SL9050 PMSM motor is designed for children Ebike ,EGOKART, and Mower.

48V 1000W KV50 2500RPM torque3NM, PMSM motor HALL+KTY-120

1.Stator : OD90X50mm height 12 slots lamination 35BA470 800V 0.6X5-12T

Rotor ： Neodymium Magnet N40SH 8 POLES

PLUGIN DESIGN 0.6X10-6T

Rotor ： Neodymium Magnet N40SH 8 POLES

PLUGIN DESIGN 0.6X10-6T

Shaft : 2CR13 D12 MM

Total 110mm Front 20mm from Flange

Dimension: OD110mmX105mm

Color : Black Powder spraying or by customs

2. ELECTRIC CHARACTERISTICS

2.1 Max Voltage 60V

High Volt test 580V less than 9.5mAINSULAT F

2.2 KV:50-60RPM/V

2.3 Maximum constant current 40A

2.3.1 Test at 25A with locked rotor until thermal euilibrium

2.4 Phase resistance : <0.185Ohm lesser the better

2.5 Class F 155 Degree C OR H 150 Degree C windings

2.6 N 40SH Magnets high magnetized and high temperature tollerance

2.7 minimize cogging Torque

2.7.1 8 magnets 12 stator teeth and has excellent fluidity

2.8 Minize torque resistant to open phase(to minize minimum current unload

probably the requirement coincides )

3. CHARACTERISTICS PULLEY COUPLING

3.1 notch SHAFT 12MM

 4. CONSTRUCTION FEATURES

4.1 Motor mounting Flange with M6threaded Holes with thread at least 5mmdepth

4.2 limit radial and axial play and uncontrolled rotations of rotor to stator

4.3 Take care of assembly avoiding scrateching of the windings insulation

4.4 Quality support bearings, for high temperatures and able to tolerate

radial force on 25KG shaft at a distance of 10mm from shaft.

4.5 preferring mechanical joining elements (keys thread grains) to gluing

4.6 If adhensives are present , guarantee resistance to temperatures> 100 C

4.7 Check and correct static ( and possibly dynamic) balance of the motor.

4.8 General constructive guarantee infinite life to mechanics at torque of 8NM

4.9 Minimize moment of inertia of the motor, lightening the rotor where possible

4.10 Mechanic dimension must conform to the 3D STEP 2022 OSET90

5. MANAGEMENT AND THERMAL DISSIPATION

5.1KTY83-120 temperature sensor resistance to ambient temperature of10Kohm

5.2 with Hall Sensors.

5.3 can pass area near gap maximize the thermal contact

5.4

5.4

6. CABLES

6.1 output cable12AWG length190mm Crimp DF22A-1416SCT

6.2 Temperature SENSOR KTY-20 12AWG 200mm with Hall Sensors 6 wires

6.3 Insulation in the wire connection Area with epoxy glue to avoid contact between

copper phases and stator frame

7. MARKING

7.1 marking text to be defined

8. Properties: Rated 48V 1000W KV60、120Torque 4NM EFF:87%WEIGHT:2.8KGS

PEAK 60V 2000W Torque 8NM 45A
