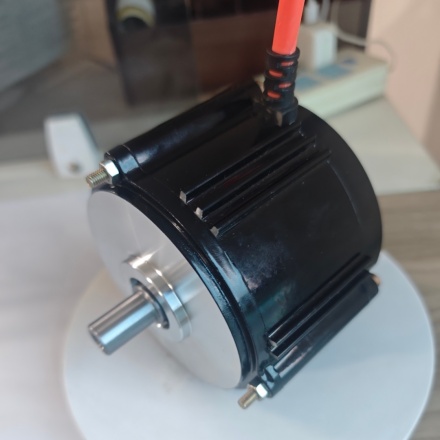

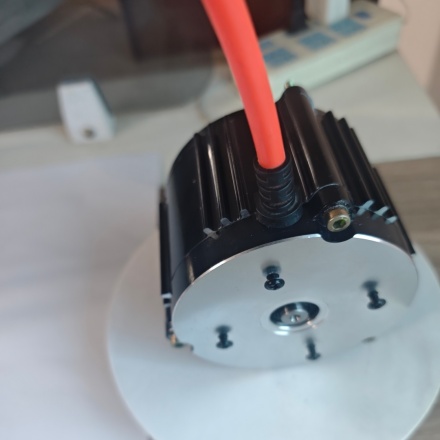

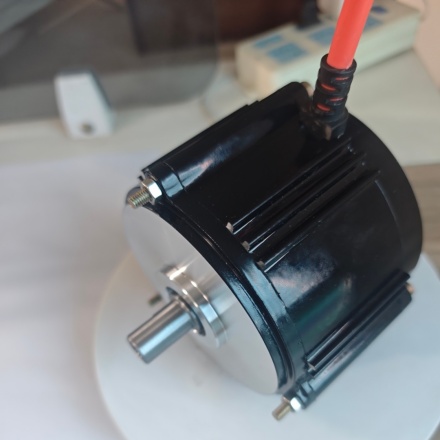

SL 102-35 IPM motor is ddesigned for lift driver , E motorcycle, Ebike , EMTB E go kart for children.
36V-40V 800W , KV 100 motor can be used for electric lawn mower . Shfte D 15mm for fixing blade.
it is very easy assembling.
Od of stator is 102mm height 35mm-- 12 slots 8 poles pug in magnet N 38SH . can be with Hall or no
SL 102-35 IPM motor is new developing PMSM motor , block magnets plug in rotor ,
OD of stator is 102mm height 35mm , 12 slots and 8 poles Plug in magnet,
It is with high torque and easy controlled , low noise , sinewave runing.

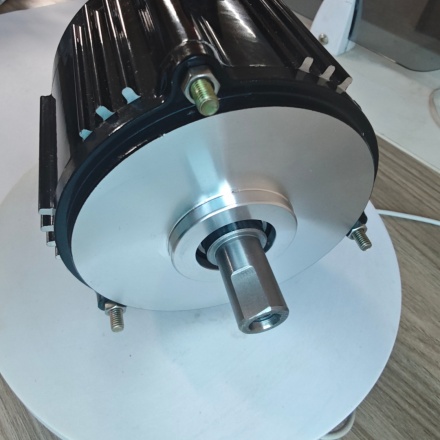

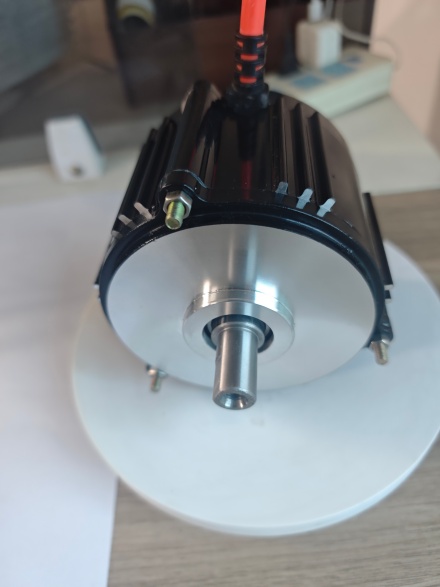

Shaft is D 15mm D type and M 8 screw hole on top; and you can make outside Encode or Hall sensors.
36V--48V KV 50--100 rated 25A Peak 35A Rated 800W
