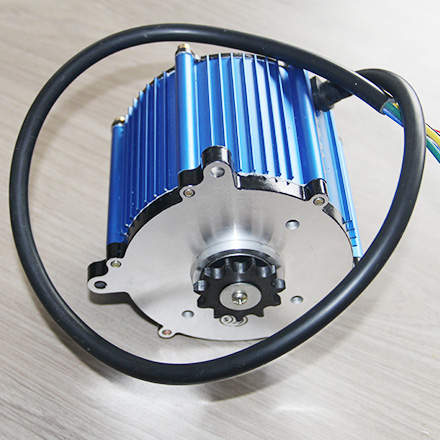

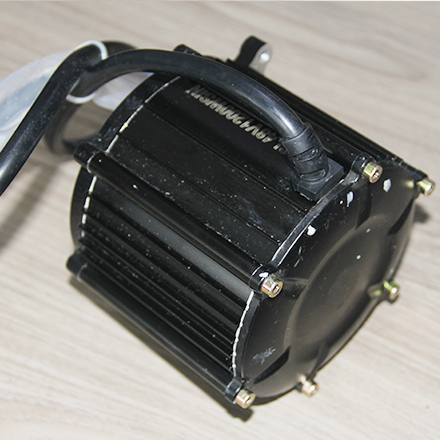

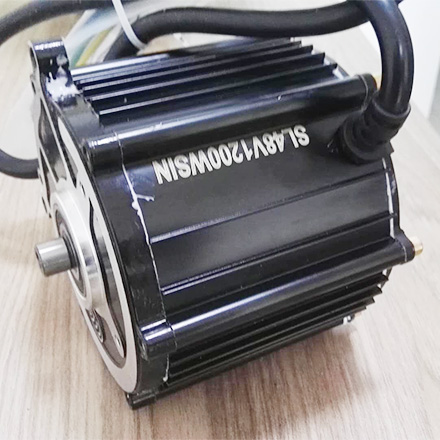

SL120-12-60 BLDC Motor -Mid driving motor for E Mountain Bike

Senli Co. develop special Mid driving motor for EMTB,

60V  rated 1200W, Rated torque 3.5NM 3200RPM

Peak Power  2.4KW 7NM

1 minute 7KW  (60V  120A)

Lamination 0.35mm  12 slots 8 magnets

Magnets : N40SH

Copper wire : 200 Grade

With Temperature sensors, with Hall Sensors

STAR connection

Resistator : 60mOHM ;

Efficiency : 83%

Length : 110mm 116mm

Shaft : D14X12  with 4X4 Keyslot D15X16 with 4X4 keyslot

Barrel color : Aluminium, Black, gold
