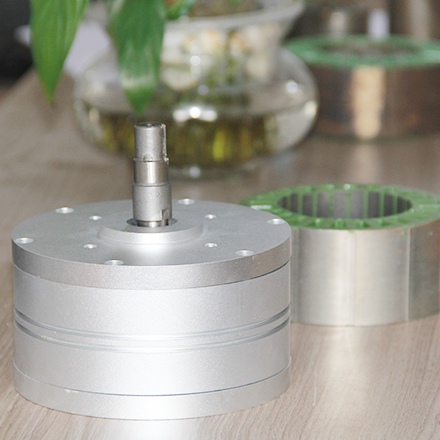

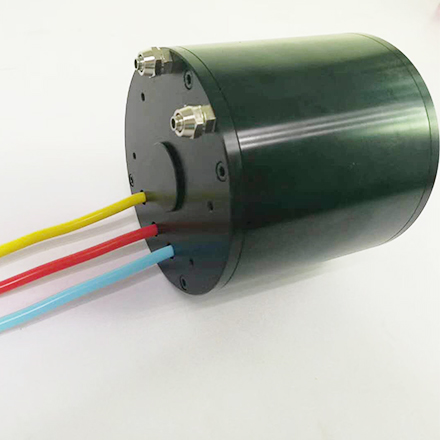

Inrunner motor , SPM design , 24Slots 8 poles high Power density motor for E surfing and Efoil
Senli Co. developes BLDC High speed motor for E-surfing board and boat:
1. Inrruner BLDC motor , lamination stator and rotor 0.20mm thin sheet ( imported from Japan)
2. Specializing design 24 slots , 8 polars magnet ,
3. Copper wires : 200 degree grade High temperature
4. Magnet : N38UH High Temperature or SmCo magnets
5. KV 100 KV180 KV200 customized
6. Barrel : 6061 Aluminium alloy CNC processing
7. Sealing by Buffer
8. High power : 5KW 6KW 8KW
9. Hall sensors or without Sensors
10. Temperature Sensors
11. Shaft D14 with 4X4 slots
12. Light weight :
13. High Efficiency : >90%
