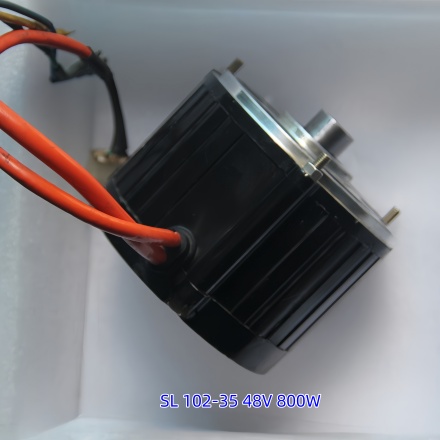

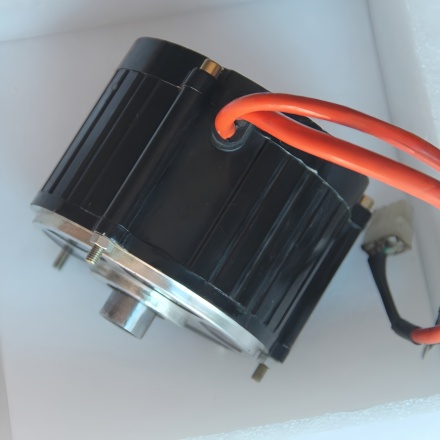

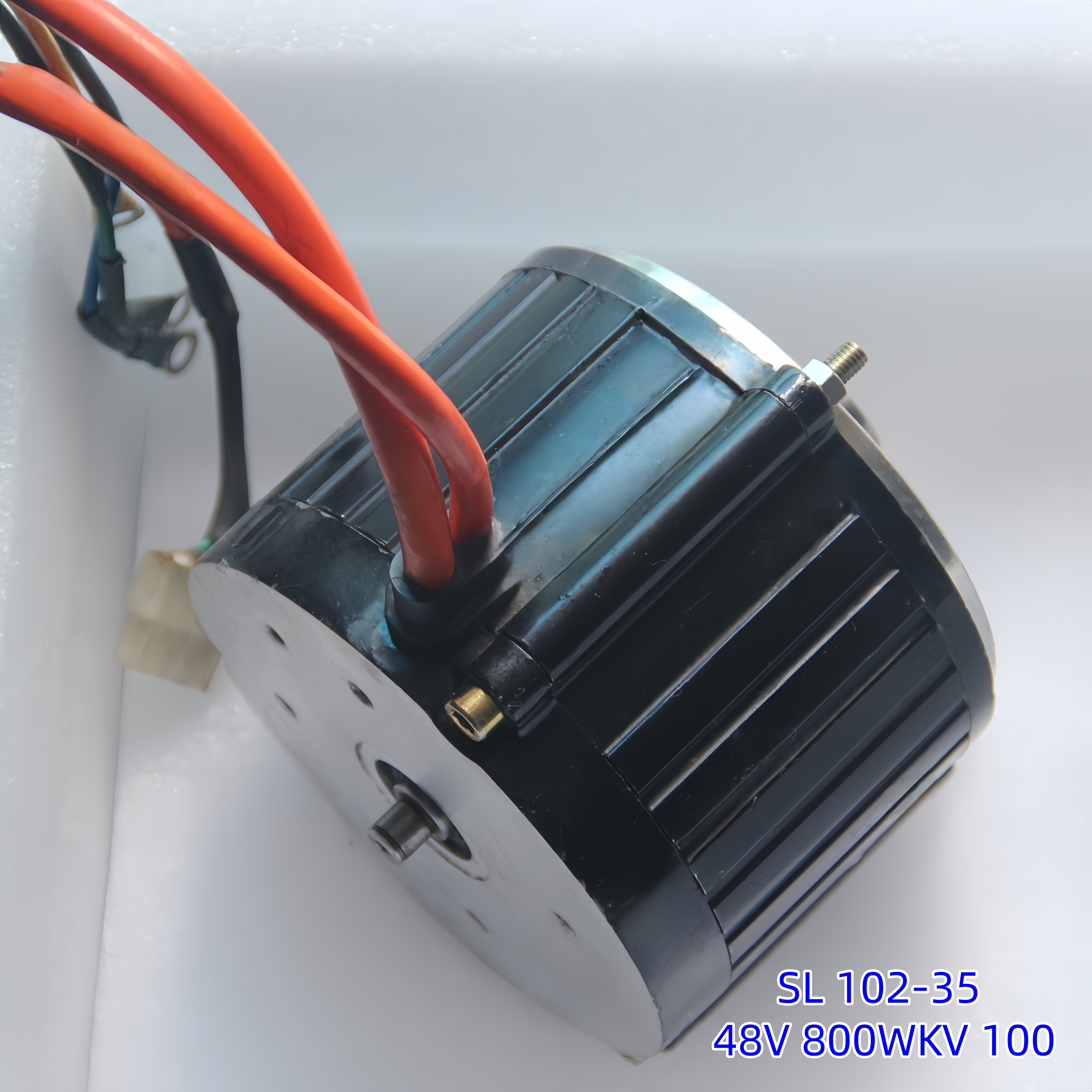

48V 800W KV 100 IPM motor

 Senlimotors developed SL 102-35  40 IPM motor , it works at 48V  800W  1KW 4500RPM  .

 Specification :

 Voltage : 48V DC

 Power  : 800W   1KW

 KV : 100  or OEM

 Shaft  spline key or D-type

 With Hall and KTY83-122 temp sensor

weigh 2.8 KGS

Dimension D110X 80
