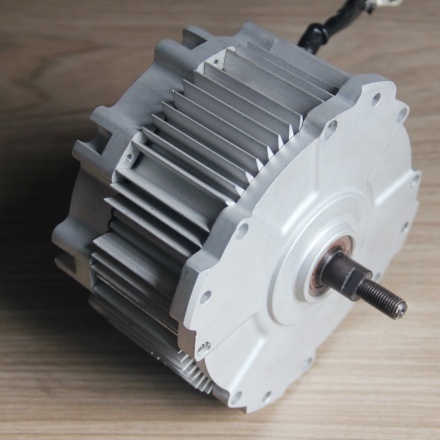

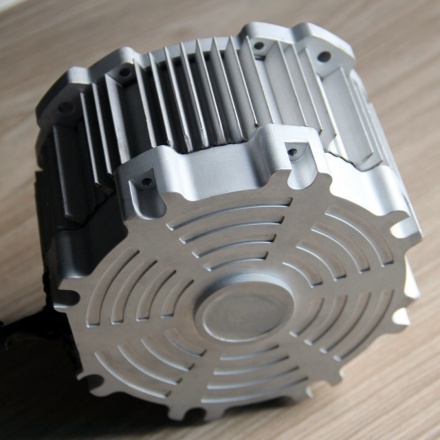

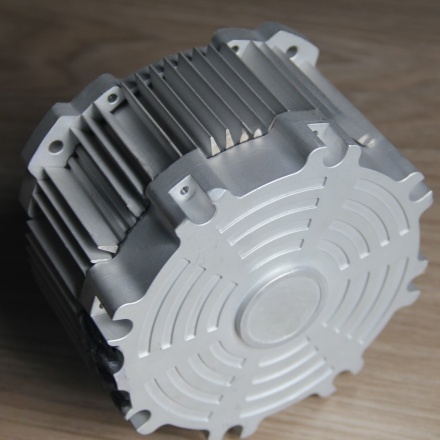

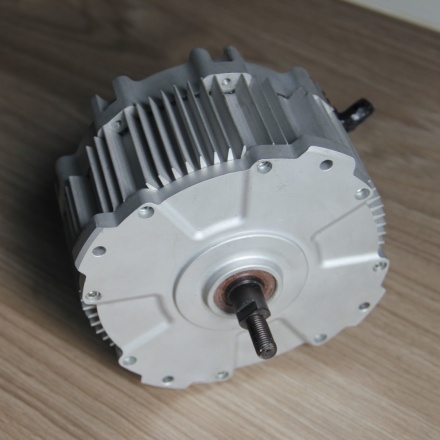

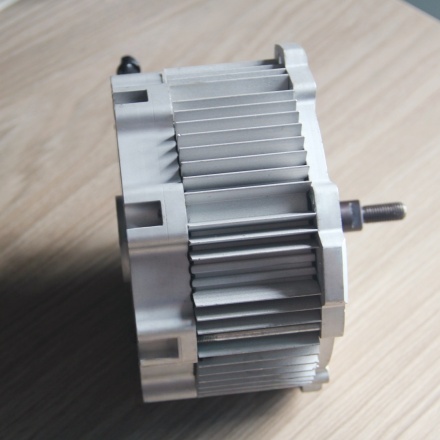

Senli Motors is developing Brand New eride mower motor, working voltage 48V/80V 2KW KV50 ， 80V 4000RPM 2KW PMSM motor
and we provide controller for this motor . 96V 2KW current 45A Peak controller ，
the stator of this motor is OD 138mm height 35mm 12 slots 10 poles magnet plug in . this motor is with higher torque and run smoothly
Total length of motor is 90mm , Diameter is 150mm , shaft D 25 mm and water-prevention IP65 . weight 4KGS
The blade will be 21"--22" max .
Barrel and cover is on moulding now , KV value and shaft will be by custom.
Senli Motors is developing Brand New eride mower motor, working voltage 48V/80V 2KW KV50 ， 80V 4000RPM 2KW PMSM motor
and we provide controller for this motor . 96V 2KW current 45A Peak controller ，
the stator of this motor is OD 138mm height 35mm 12 slots 10 poles magnet plug in . this motor is with higher torque and run smoothly
Total length of motor is 90mm , Diameter is 150mm , shaft D 25 mm and water-prevention IP65 . weight 4KGS
The blade will be 21"--22" max .
Barrel and cover is on moulding now , KV value and shaft will be by custom
