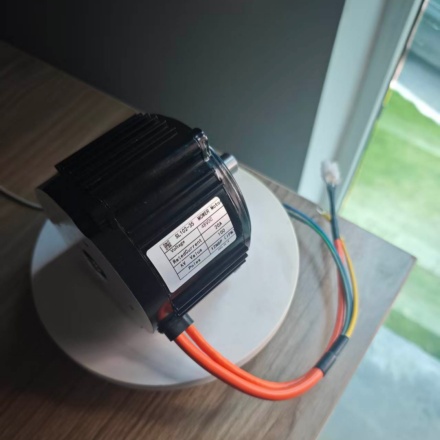

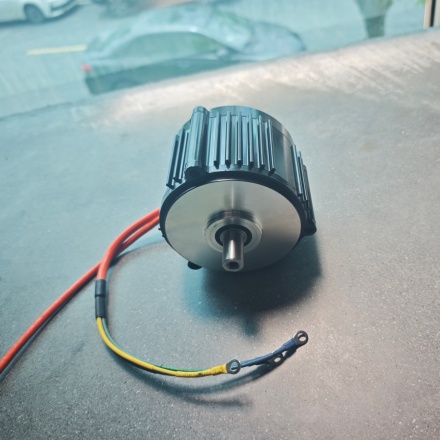

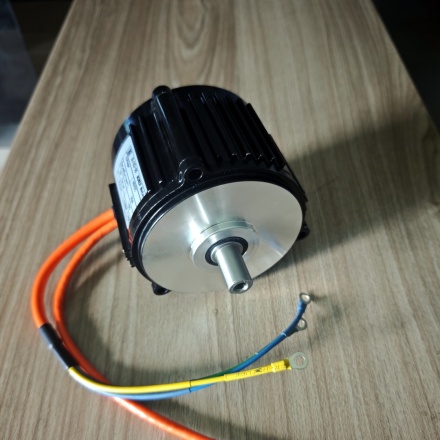

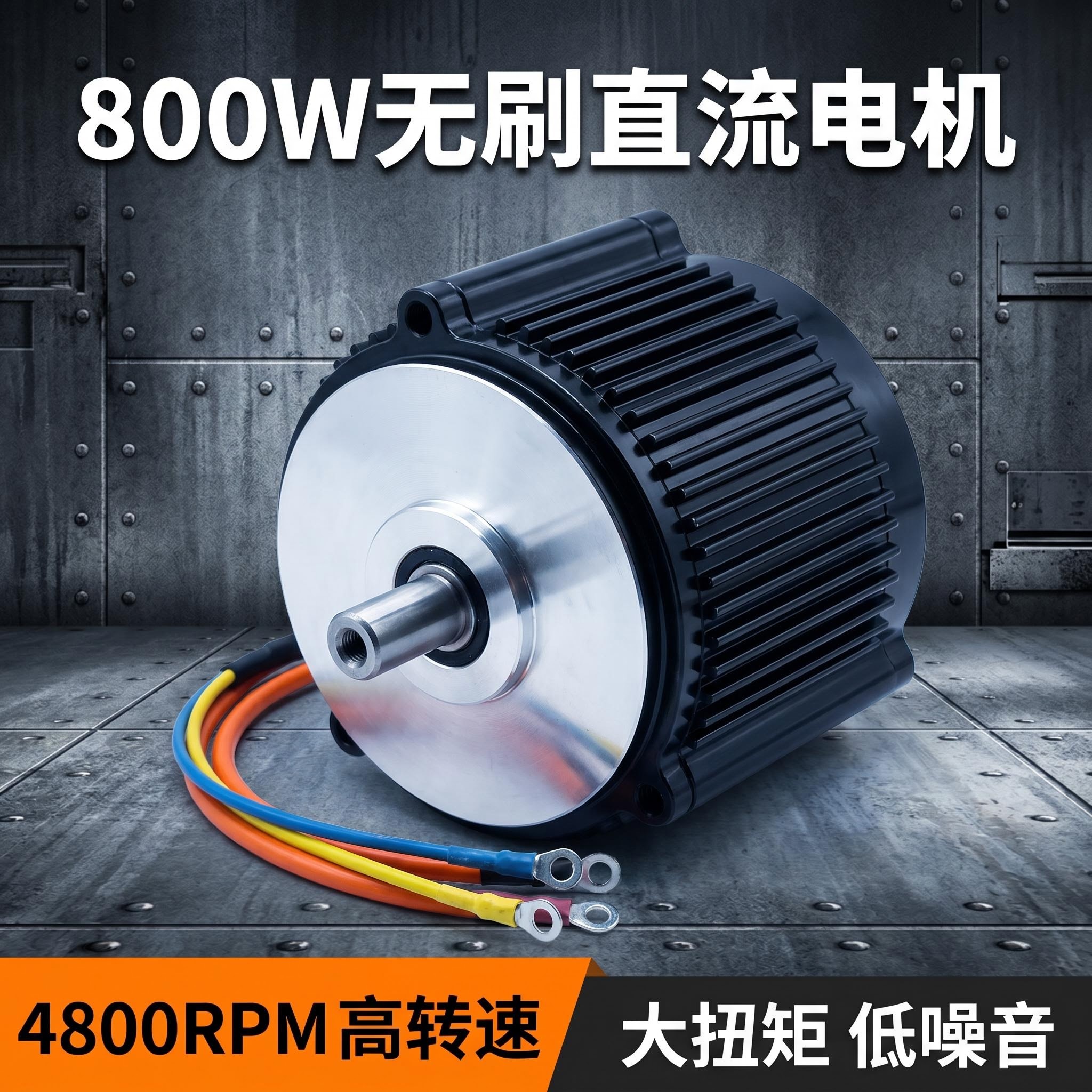

SL102-35 48V 800W PMSM motor for Ebike

Senlimotors  developes SL 102-35-40 PMSM motor , the weight 2.8KGS , with Hall sensors and temp sensor , water proof , and light , high torque.

this motor can be used Ebike , E gokart , E boat , E AGV . Robot ,, Mower motor ...

 Motor properties:

  outside diameter of Stator :  102mm  12 slots  height 35mm

  Rotor :                                     8 poles PLUG IN

  Working Voltage :    48V

  KV  100

  Rated Power     800W ， 1KW

  With  Hall   Sensors

  Temperature sensor： KTY83-122

   Plug   new standard : 6 pin or 8 pin

  can assemble Electric magnet Brake

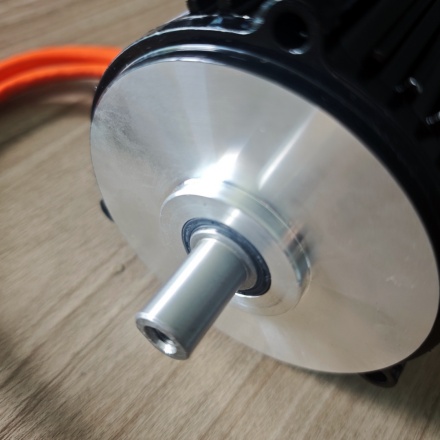

  Shaft  : D 15mm  /14mm   25mm with M 8 hole

   weight  2.8KGS

   IP56
