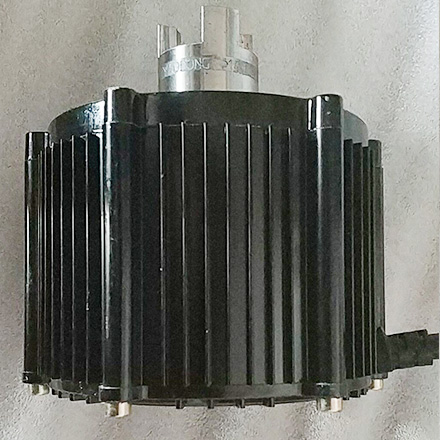

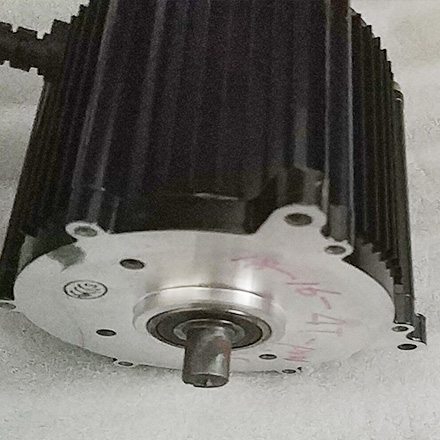

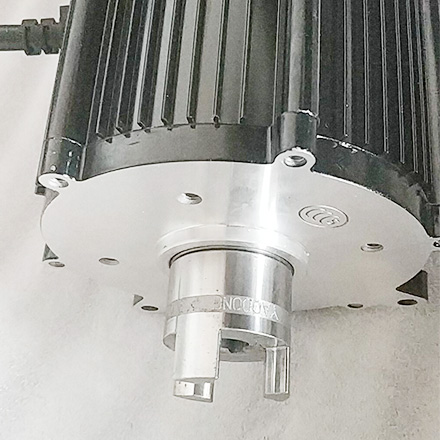

SL120-12-50 BLDC Motor -Mid driving motor for E Mountain Bike

Senli Co. develop special Mid driving motor for EMTB,

60V  rated 1000W  , Rated torque 3.5NM 3500RPM

Peak Power  2KW 7NM

1 minute 6KW  (60V  100A)

Lamination  0.35mm  12 slots 8 magnets

Magnets : N40SH

Copper wire : 200 Grade

With Temperature sensors , with Hall Sensors

STAR  connection

Resistator : 40mOHM

Efficiency : 83%

Length : 100mm 106mm

Shaft : D14X12  with 4X4 Keyslot D15X16 with 4X4 keyslot

Barrel color : Aluminium, Black, gold
