SL１２０－６０G IPM is designed for gearbox driving , it is with 16 teeth,
60 mm leng rotor with 20 pcs magnets 10 poles , iPM motor , it can be controlled by
weak flux , can be get high speed .

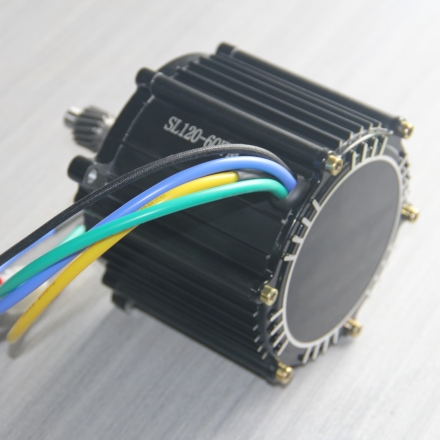

Senli motors produces SL120-60 IPM motor , 12 slots
10 poles 20 pcs magnets plugin , Height of magnet is 60mm \

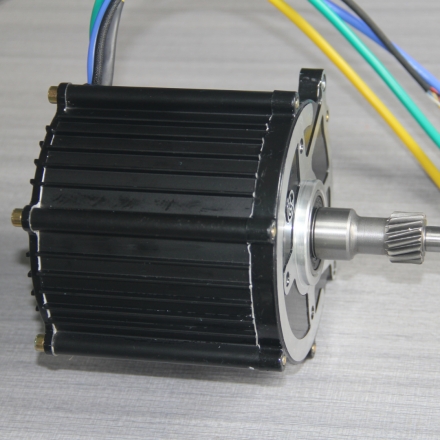

It keep 16 tile teeth for gearbox , can be used Go-kart and other application , as
delete cooling fan , it can save space to assemble .
Rated 60V 2KW , peak 8KW KV50
weight 5.6KGS
