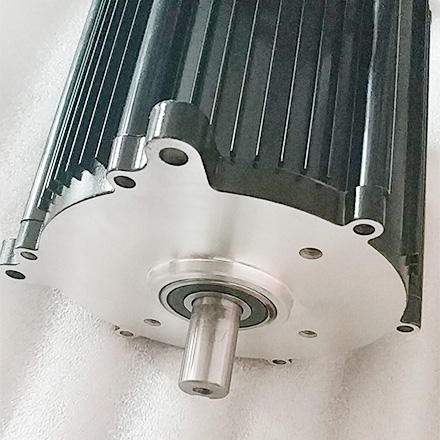

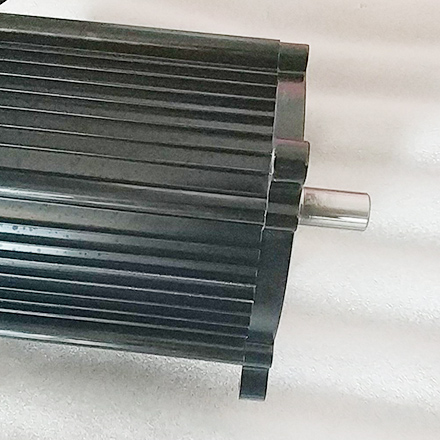

SL120-18-100 BLDC Motor -Mid driving motor for E Motorcycle

Senli Co. develop special Mid driving motor for EMotorcycle,

60V  rated 3000W , Rated torque11NM   3600RPM

Peak Power  6KW 22NM

1 minute 12KW  (60V  200A)

Lamination  0.35mm  18 slots  16 magnets

Magnets : N40SH

Copper wire : 200 Grade

With Temperature sensors , with Hall Sensors

DELTA  connection

Resistator : 36mOHM ;

Efficiency :90%

Length :   156mm

Shaft : D17X30  with 5X5 Keyslot

Barrel color : Aluminium , Black , gold
