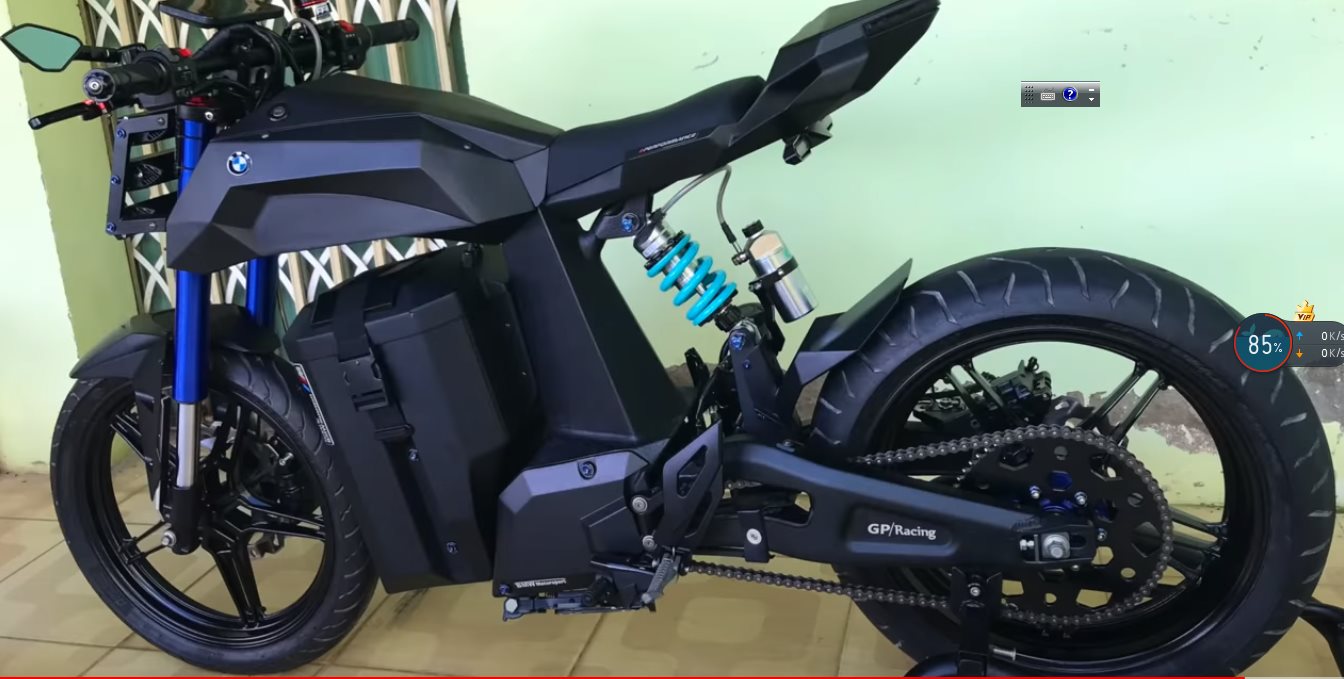

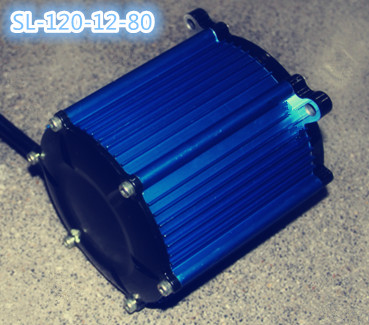

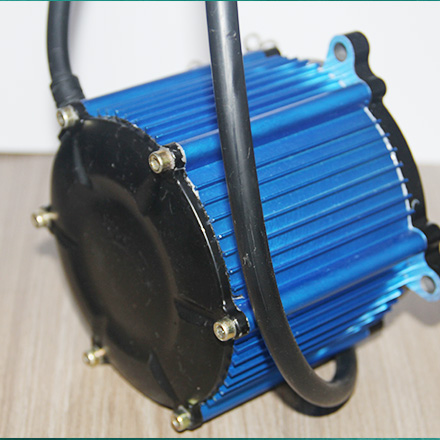

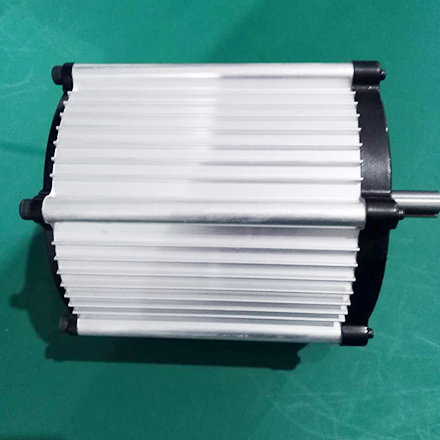

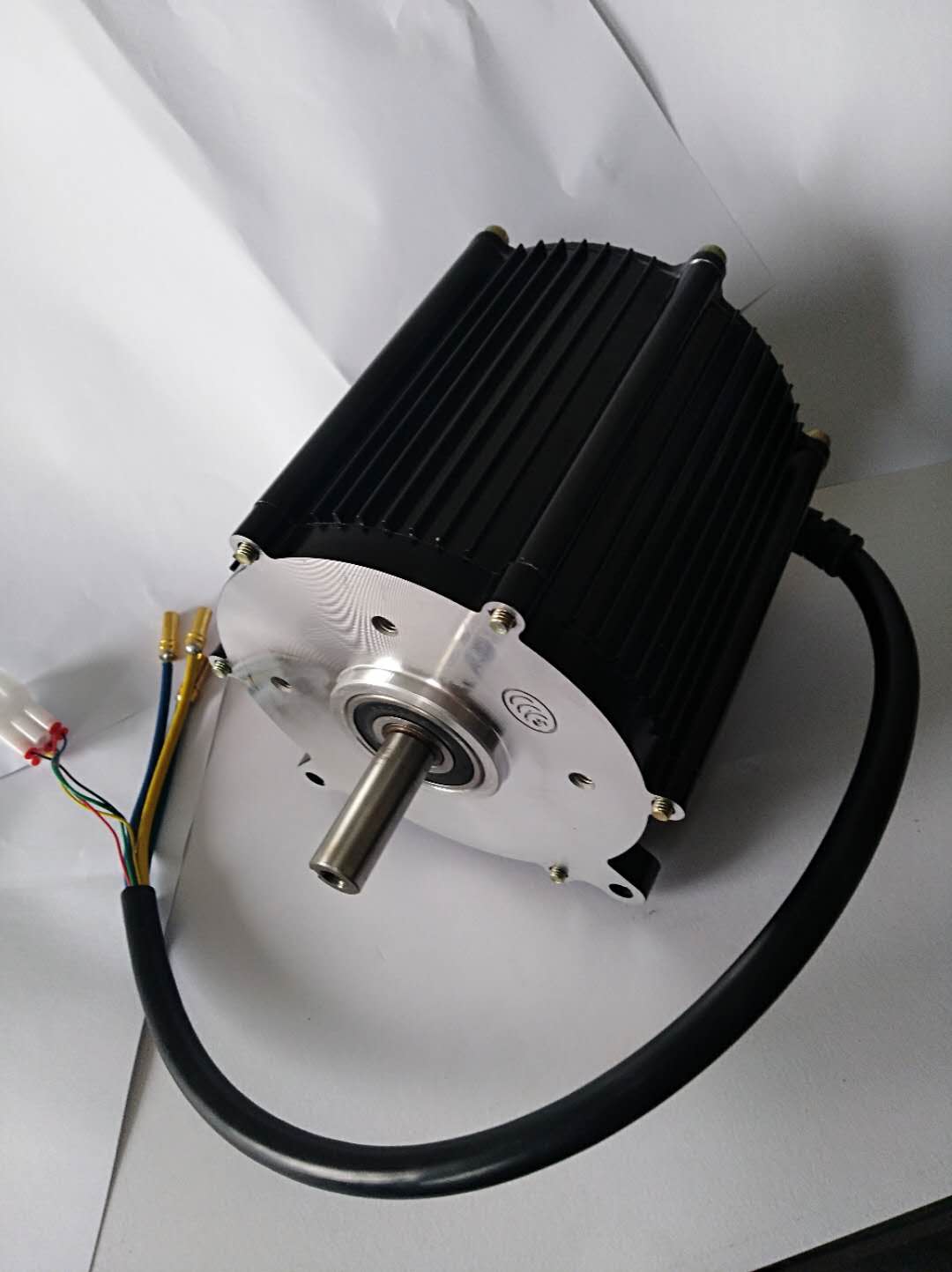

SL120-12-80 have been used in super soco Ebike (DIY mid drive motor ) and 85KM/H Electric motorcycle.
Senli Co. develop special Mid driving motor for EMotorcycle,
60V rated 2000W, Rated torque 7NM 3200RPM
Peak Power 4KW 14NM
1 minute 8KW (60V 140A)
Lamination 0.35mm 12 slots 8 magnets
Magnets : N40SH
Copper wire : 200 Grade
With Temperature sensors, with Hall Sensors
STAR connection
Resistator : 50mOHM;
Efficiency : 85%
Length : 136mm

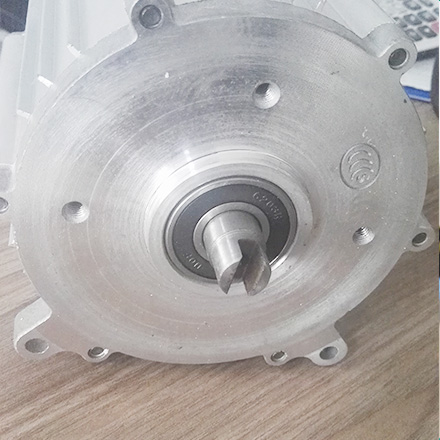

Shaft : D14X12 with 4X4 Keyslot
Barrel color : Aluminium, Black, gold
