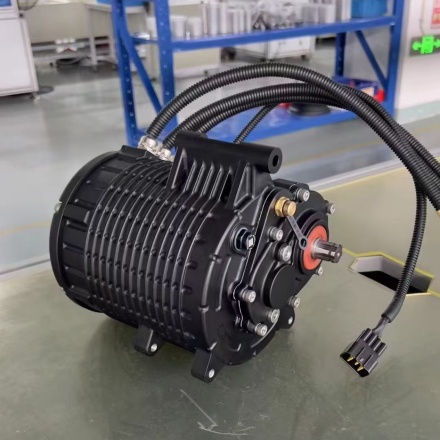

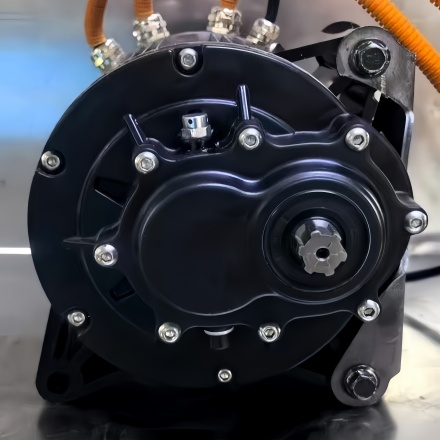

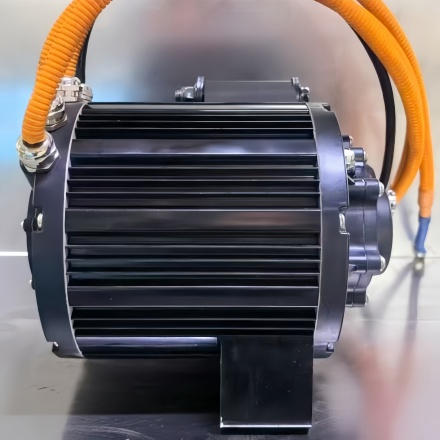

72V 5KW Hairpin PMSM　motor for E motorcycle　

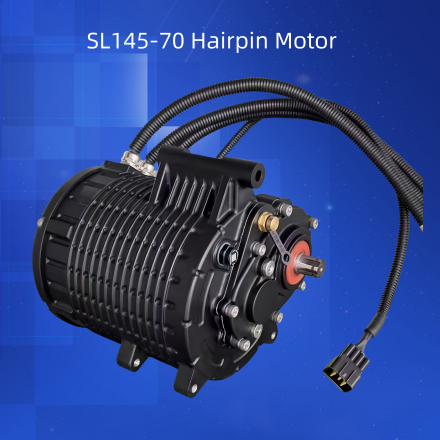

SL 145-70 Hairpin motor :

1. OD of stator  145mm  70mm height

2.  Coils is Hairpin winded , brand  new design .

3. Plug in Neosymium magnets

4.  Magnetic encode outside

5. Gearboc 2.36/1   spline shaft

6. 72V Rated 5KW Peak 10.8KW

7. 72V rated speed  5600RPM

8. Peak torque  74NM/ 360A Bus

9. Output torque 117.5NM  (Gear ratio 2.36_)
