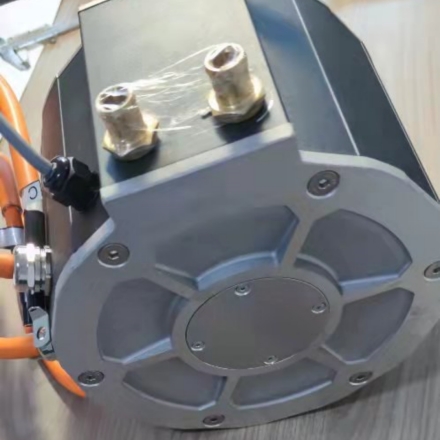

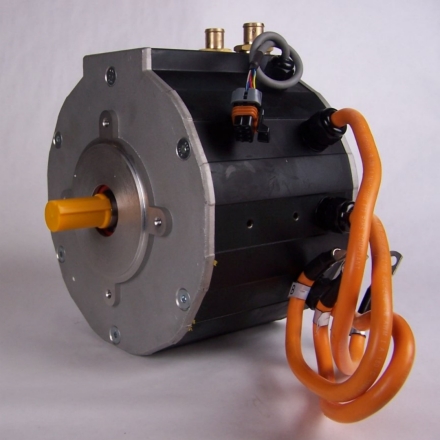

PMAC Water Cooled motor for up to 96 VDC battery systems, and 250 amps continuous.
This has the same stator and rotor as the ME1507, but in a water cooled IP65 case.
(IP67 possible with the addition of an output shaft side seal.) Other windings are available for
up to 700 VDC applications. Motor weight of 58 pounds. Comes in Single Pack box,
measuring 14 x 14 x 12 inches, weighing 61 pounds.
